空间分析判断以及坐标转换工具

发表于 分类于
本文字数： 29k 阅读时长 ≈ 49 分钟

一、背景

记录自身在项目实践过程中编写的一些GIS常用工具，源码已上传GitHub：

  1. 几何基本属性工具：提供几何的基本空间属性获取和操作
  2. 坐标转换工具：提供百度，高德坐标系与标准坐标系的相互转化功能
  3. 几何空间关系判断：提供几何关系（相交，包含等）判断

二、工具类

1、GeometryRelatedUtil

1.1、空间位置关系判断:

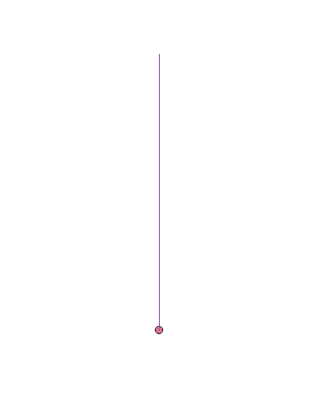

  • disjointGeo(geom1,geom2) 相离

两个几何对象不相交，即不存在交点。


  • equalsGeo(geom1,geom2) 相等

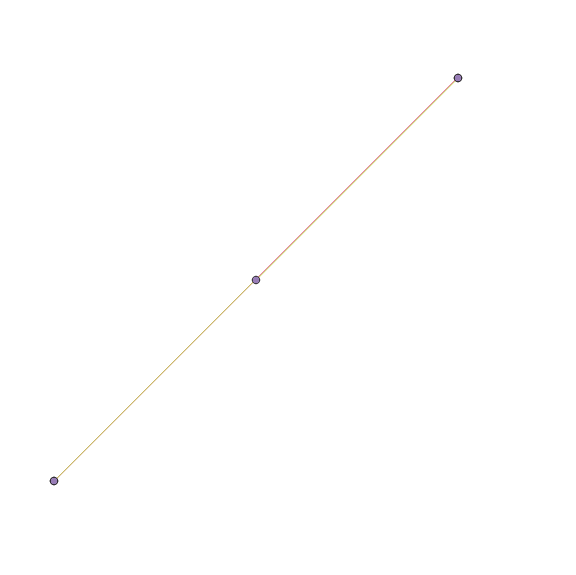

如果给定的几何图形“空间相等”，则返回TRUE 如果两个几何对象equal 为TRUE


1
LINESTRING(0 0, 10 10) equal LINESTRING(0 0, 5 5, 10 10) = TRUE

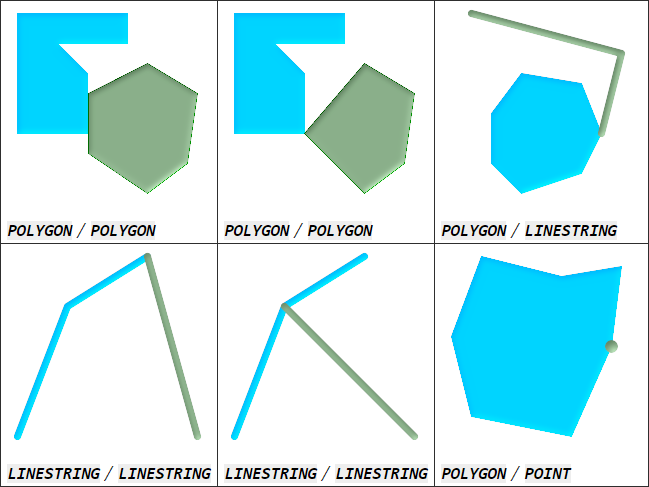

  • touchesGeo(geom1,geom2) 相接

几何是否至少有一个共同点，但它们的内部不相交。


  • intersectGeo(geom1,geom2) 相交

如果两个几何对象在2D中空间相交（共享空间的任何部分）则返回TRUE，如果它们不共享则返回FALSE（它们是disjoint）

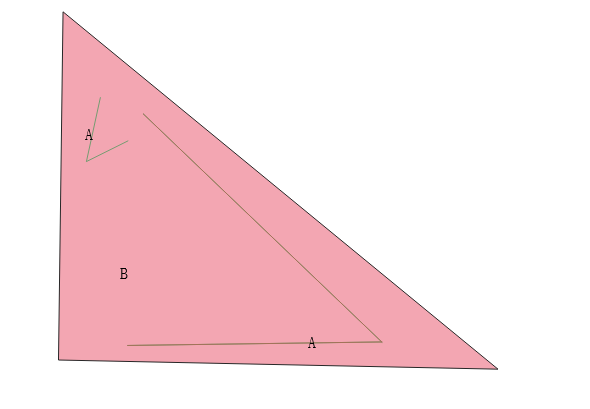

  • withinGeo(geom1,geom2) 内含

如果几何体A完全位于几何体B内，则返回TRUE

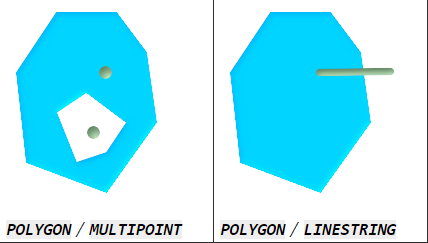

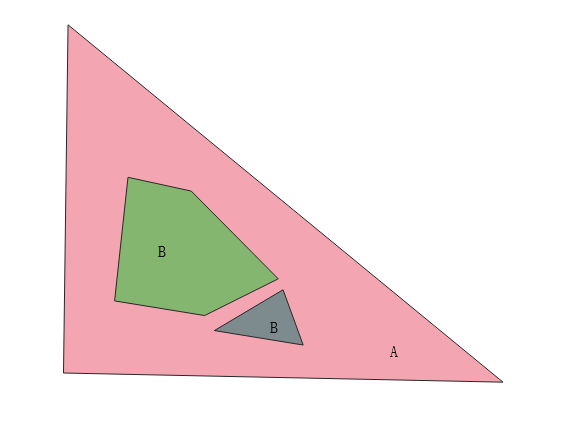

6、containsGeo(geom1,geom2) 包含

几何A包含几何B，当且仅当B的外部没有位于A的外部时，并且B的内部的至少一个点位于A的内部。
contain是within的反转。因此contain（A，B）意味着within（B，A）

  • True


  • FALSE

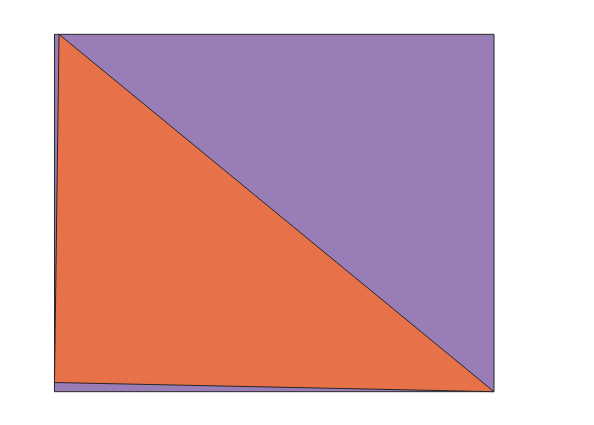

  • overlapsGeo(geom1,geom2) 交叠

如果几何图形“空间重叠”，则返回TRUE。意思是它们相交，但一个并不完全包含另一个。


  • coversGeo(geom1,geom2) 覆盖

如果几何B中没有点在几何A之外，则返回 TRUE


  • coveredByGeo(geom1,geom2) 被覆盖

如果几何A中没有点在几何B之外，则返回 TRUE

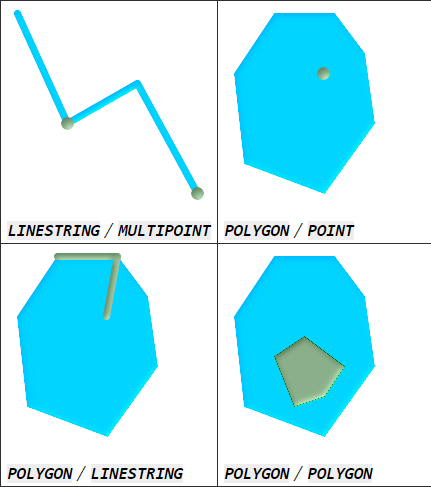

  • crossesGeo(geom1,geom2) 交叉

提供的几何是否有一些共同的内部点，但不是全部,则返回TRUE。

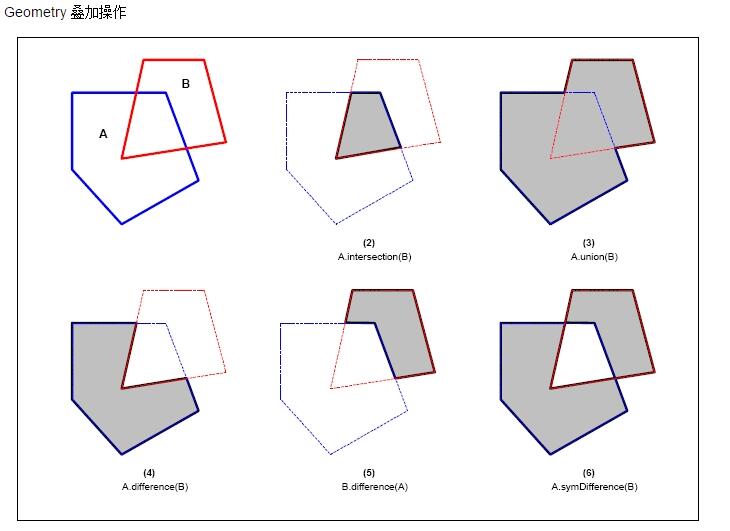

1.2、空间叠加分析


  • geometryDifference(geom1,geom2) 差异分析

差异分析，得到去除geom1 与geom2重叠部分剩下的geom1几何对象

  • geometryUnion(geom1,geom2) 联合分析

合并分析，得到几何对象geom1 和 geom2几何对象 合并成一个几何对象

  • geometryIntersection(geom1,geom2) 交叉分析

叠加分析，得到geom1几何对象和geom2几何对象叠加部分

  • geometrySymdifference(geom1,geom2) 对称差异分析

对称差异分析：得到去除geom1 与geom2重叠部分，剩下的geom1和geom2生成新的几何对象

2、GeometryBaseAnalysisUtil

1、getBuffer 获取缓冲区

给定缓冲距离，生成缓冲区（当几何对象坐标系为地理坐标系，单位为度；当几何对象坐标系为投影坐标系，单位为米）

2、getEnvelope 外包矩形

获取当前几何对象的外包矩形


3、convexHull 最小凸包多边形

获取当前几何对象的最小凸包多边形

4、getCentroid 获取质心点

获取几何对象的质心点

5、getLength 获取长度

获取长度 线几何返回长度 面几何返回周长，其他返回0.0

6、getArea 获取面积

获取几何对象面积 面几何返回面积，其他几何返回0.0

3、CoordinateTransformUtil：坐标转换

坐标转换类 提供了BD09,GCJ02,WGS84等EPSG标准的坐标系相互转换功能

  • transform(transformGeomBean)

    根据传入的 TransformGeomBean 进行坐标转换

  • transformFormOther2EPSG(geometry,source,target)

    给Geometry 从自定义坐标系转EPSG标准坐标系

  • transformFormEPSG2Other(geometry,source,target)

    给Geometry 从EPSG标准坐标系转自定义坐标系

  • transformForEPSG(geometry,source,target)

    Geometry EPSG标准坐标系相互转化

  • transformForOther(geometry,source,target)

    Geometry 自定义坐标系相互转化

三、基础类

  1. BaseGeomBean：基本几何类型类

    名称 类型 说明
    geomType GeomTypeEnum 几何类型
    dataType DataTypeEnum 数据类型
    coordinates String 坐标串

  2. TransformGeomBean：坐标转换基础类，继承自BaseGeomBean

    名称 类型 说明
    fromCrsCode String 几何对象源坐标系
    toCrsCode String 几何目标坐标系

  1. RelatedGeomBean：空间关系判断基础类，继承自BaseGeomBean

    名称 类型 说明
    srid int 坐标参考系EPSG代码

四、示例

1、分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
import bean.RelatedGeomBean;
import com.vividsolutions.jts.geom.Coordinate;
import com.vividsolutions.jts.geom.Geometry;
import com.vividsolutions.jts.geom.GeometryCollection;
import com.vividsolutions.jts.io.ParseException;
import com.vividsolutions.jts.io.WKTWriter;
import enums.DataTypeEnum;
import enums.GeomTypeEnum;
import factory.GeoFactory;
import org.junit.Test;
import utils.CoordinateTransformUtil;
import utils.GeometryBaseAnalysisUtil;
import utils.GeometryRelatedUtil;
import utils.GeometryUtil;

import java.io.IOException;
import java.util.List;

/**
 * @author gisShield
 * @title: GeometryRelatedUtilTest
 * @projectName gis-tools
 * @description: TODO
 * @date 2021/5/4 12:04
 */
public class GeometryRelatedUtilTest {
    GeoFactory myGeometryFactory = new GeoFactory();

    @Test
    public void disjointGeoTest() throws IOException, ParseException {
        // 测试点线相离
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POINT);
        point1.setDataType(DataTypeEnum.BASE);
        point1.setCoordinates("119.440,30.324");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.LINE);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("LINESTRING (119.440 30.539, 119.440 30.156)");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("点相离判断：" + GeometryRelatedUtil.disjointGeo(geom1, geom2));
    }

    @Test
    public void equalsGeoTest() throws IOException, ParseException {
        // 测试线线相等
        RelatedGeomBean relatedGeomBean1 = new RelatedGeomBean();
        relatedGeomBean1.setGeomType(GeomTypeEnum.LINE);
        relatedGeomBean1.setDataType(DataTypeEnum.BASE);
        relatedGeomBean1.setCoordinates("119.4401,30.539,119.440,30.156");
        RelatedGeomBean relatedGeomBean2 = new RelatedGeomBean();
        relatedGeomBean2.setGeomType(GeomTypeEnum.LINE);
        relatedGeomBean2.setDataType(DataTypeEnum.WKT);
        relatedGeomBean2.setCoordinates("LINESTRING (119.440 30.539, 119.440 30.156)");
        Geometry geom1 = myGeometryFactory.getGeometry(relatedGeomBean1);
        Geometry geom2 = myGeometryFactory.getGeometry(relatedGeomBean2);
        System.out.println("线线相等判断：" + GeometryRelatedUtil.equalsGeo(geom1, geom2));
    }

    @Test
    public void touchesGeoTest() throws IOException, ParseException {
        //测试线面相接
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.LINE);
        point1.setDataType(DataTypeEnum.BASE);
        // true 121.151931,30.284941,120.152074,30.295875
        point1.setCoordinates("120.151931,30.284941,120.152074,30.295875");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("线面相接判断：" + GeometryRelatedUtil.touchesGeo(geom1, geom2));
    }

    @Test
    public void crossesTest() throws IOException, ParseException {
        //测试线面交叉
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.LINE);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941,120.152074,30.295875
        point1.setCoordinates("120.1815,30.2847,120.1448,30.2847");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("线面相接判断：" + GeometryRelatedUtil.crossesGeo(geom1, geom2));
    }

    @Test
    public void withinGeoTest() throws IOException, ParseException {
        //测试点在面内
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POINT);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.1595,30.2818");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("点在面内判断：" + GeometryRelatedUtil.withinGeo(geom1, geom2));
    }

    @Test
    public void containsGeoTest() throws IOException, ParseException {
        //测试面包含点
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POINT);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.1595,30.2818");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("面包含点判断：" + GeometryRelatedUtil.containsGeo(geom2, geom1));
    }

    @Test
    public void overlapsGeoTest() throws IOException, ParseException {
        //测试面面交叠
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POLYGON);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.1554692,30.2872386,120.154711,30.280239,120.159814,30.279412,120.16834,30.28976,120.15899,30.29470,120.1554692,30.2872386");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("面面交叠判断：" + GeometryRelatedUtil.overlapsGeo(geom1, geom2));
    }

    @Test
    public void coversGeoTest() throws IOException, ParseException {
        //测试面面覆盖
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.MULTIPOLYGON);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.15547,30.28724,120.15471,30.28024,120.15981,30.27941,120.16398,30.28149,120.15905,30.28646,120.15547,30.28724;120.16425,30.28087,120.16036,30.27856,120.16539,30.27774,120.16425,30.28087");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("面面覆盖判断：" + GeometryRelatedUtil.coversGeo(geom2, geom1));
    }

    @Test
    public void coveredByGeoTest() throws IOException, ParseException {
        //测试线被面覆盖
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.MULTILINESTRING);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.15418,30.29101,120.15339,30.28739,120.15574,30.28856;120.15663,30.29011,120.17015,30.27718,120.15574,30.27698");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("线被面覆盖判断：" + GeometryRelatedUtil.coveredByGeo(geom1, geom2));
    }

    @Test
    public void intersectGeoTest() throws IOException, ParseException {
        // 测试线面相交
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.MULTILINESTRING);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.15418,30.29101,120.15339,30.28739,120.15574,30.28856;120.15663,30.29011,120.17015,30.27718,120.15574,30.27698");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        System.out.println("线面相交判断：" + GeometryRelatedUtil.intersectGeo(geom1, geom2));
    }

    @Test
    public void isInBufferTest() throws IOException, ParseException {
        RelatedGeomBean line = new RelatedGeomBean();
        line.setGeomType(GeomTypeEnum.LINE);
        line.setDataType(DataTypeEnum.BASE);
        // true 121.151931,30.284941,120.152074,30.295875
        line.setCoordinates("120.151931,30.284941,120.152074,30.295875");

        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POINT);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("121.1595,30.2818");
//        double angular = 1000.0/(Math.PI/180) / 6378137;
        Geometry geom1 = CoordinateTransformUtil.transformForEPSG(myGeometryFactory.getGeometry(line), "EPSG:4326", "EPSG:3857");
        Geometry geom2 = CoordinateTransformUtil.transformForEPSG(myGeometryFactory.getGeometry(point1), "EPSG:4326", "EPSG:3857");

        // buffer 以坐标系为单位 坐标系以米为单位 则buffer 为米 ，坐标系以度为单位 则buffer 为度
        Geometry geometry = GeometryBaseAnalysisUtil.getBuffer(geom1, 0.000001);
        System.out.println("缓冲区：" + GeometryRelatedUtil.isInBuffer(geometry, geom2));
    }

    @Test
    public void isWithinDistanceTest() throws IOException, ParseException {
        RelatedGeomBean line = new RelatedGeomBean();
        line.setGeomType(GeomTypeEnum.LINE);
        line.setDataType(DataTypeEnum.BASE);
        line.setSrid(4326);
        // true 121.151931,30.284941,120.152074,30.295875
        line.setCoordinates("120.151931,30.284941,120.152074,30.295875");

        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POINT);
        point1.setDataType(DataTypeEnum.BASE);
        line.setSrid(4326);
        // false 120.151931,30.284941
        point1.setCoordinates("121.1595,30.2818");
        // 进行米转度操作
        double angular = 0.000001;
        System.out.println(angular);
        Geometry geom1 = CoordinateTransformUtil.transformForEPSG(myGeometryFactory.getGeometry(line), "EPSG:4326", "EPSG:3857");
        Geometry geom2 = CoordinateTransformUtil.transformForEPSG(myGeometryFactory.getGeometry(point1), "EPSG:4326", "EPSG:3857");

        System.out.println("缓冲区：" + GeometryRelatedUtil.isWithinDistance(geom1, geom2, angular));
    }

    @Test
    public void geometryDifferenceTest() throws IOException, ParseException {
        //测试面面交叠
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POLYGON);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.1554692,30.2872386,120.154711,30.280239,120.159814,30.279412,120.16834,30.28976,120.15899,30.29470,120.1554692,30.2872386");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        Geometry geometry = GeometryRelatedUtil.geometryDifference(geom1, geom2);
        System.out.println("差异分析：" + geometry.getGeometryType());
        List<Coordinate> coordinateList = GeometryUtil.getGeomCoordinates(geometry);
        StringBuffer sb = new StringBuffer();
        for (Coordinate coord :
                coordinateList) {
            sb.append(coord.x + " " + coord.y + ",");
        }
        System.out.println(sb.toString());
    }

    @Test
    public void geometryUnionTest() throws IOException, ParseException {
//测试面面交叠
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POLYGON);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.1554692,30.2872386,120.154711,30.280239,120.159814,30.279412,120.16834,30.28976,120.15899,30.29470,120.1554692,30.2872386");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        Geometry geometry = GeometryRelatedUtil.geometryUnion(geom1, geom2);
        System.out.println("联合分析：" + geometry.getGeometryType());
        List<Coordinate> coordinateList = GeometryUtil.getGeomCoordinates(geometry);
        StringBuffer sb = new StringBuffer();
        for (Coordinate coord :
                coordinateList) {
            sb.append(coord.x + " " + coord.y + ",");
        }
        System.out.println(sb.toString());
    }

    @Test
    public void geometryIntersectionTest() throws IOException, ParseException {
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POLYGON);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.1554692,30.2872386,120.154711,30.280239,120.159814,30.279412,120.16834,30.28976,120.15899,30.29470,120.1554692,30.2872386");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        Geometry geometry = GeometryRelatedUtil.geometryIntersection(geom1, geom2);
        System.out.println("交叉分析：" + geometry.getGeometryType());
        List<Coordinate> coordinateList = GeometryUtil.getGeomCoordinates(geometry);
        StringBuffer sb = new StringBuffer();
        for (Coordinate coord :
                coordinateList) {
            sb.append(coord.x + " " + coord.y + ",");
        }
        System.out.println(sb.toString());
    }

    @Test
    public void geometrySymdifferenceTest() throws IOException, ParseException {
        RelatedGeomBean point1 = new RelatedGeomBean();
        point1.setGeomType(GeomTypeEnum.POLYGON);
        point1.setDataType(DataTypeEnum.BASE);
        // false 120.151931,30.284941
        point1.setCoordinates("120.1554692,30.2872386,120.154711,30.280239,120.159814,30.279412,120.16834,30.28976,120.15899,30.29470,120.1554692,30.2872386");
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point1);
        Geometry geom2 = myGeometryFactory.getGeometry(point2);
        Geometry geometry = GeometryRelatedUtil.geometrySymdifference(geom1, geom2);
        System.out.println("对称差异分析：" + geometry.getGeometryType());
        List<List<Coordinate>> coordinateList = GeometryUtil.getGeomCoordinates((GeometryCollection) geometry);
        for (List<Coordinate> coordList :
                coordinateList) {
            StringBuffer sb = new StringBuffer();
            for (Coordinate coord :
                    coordList) {
                sb.append(coord.x + " " + coord.y + ",");
            }
            System.out.println(sb.toString());
        }
    }

    @Test
    public void getEnvelope() throws IOException, ParseException {
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point2);
        Geometry geometry = GeometryBaseAnalysisUtil.getEnvelope(geom1);
        WKTWriter wktWriter = new WKTWriter();
        System.out.println(wktWriter.write(geometry));
    }

    @Test
    public void convexHull() throws IOException, ParseException {
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point2);
        Geometry geometry = GeometryBaseAnalysisUtil.convexHull(geom1);
        WKTWriter wktWriter = new WKTWriter();
        System.out.println(wktWriter.write(geometry));
    }

    @Test
    public void getCentroid() throws IOException, ParseException {
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = myGeometryFactory.getGeometry(point2);
        Geometry geometry = GeometryBaseAnalysisUtil.getCentroid(geom1);
        WKTWriter wktWriter = new WKTWriter();
        System.out.println(wktWriter.write(geometry));
    }

    @Test
    public void getLength() throws IOException, ParseException {
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = CoordinateTransformUtil.transformForEPSG(myGeometryFactory.getGeometry(point2), "EPSG:4326", "EPSG:3857");
        double length = GeometryBaseAnalysisUtil.getLength(geom1);

        System.out.println(length);
    }

    @Test
    public void getArea() throws IOException, ParseException {
        RelatedGeomBean point2 = new RelatedGeomBean();
        point2.setGeomType(GeomTypeEnum.POLYGON);
        point2.setDataType(DataTypeEnum.WKT);
        point2.setCoordinates("POLYGON ((120.152074 30.295875, 120.151816 30.276156, 120.176707 30.275637, 120.152074 30.295875))");
        Geometry geom1 = CoordinateTransformUtil.transformForEPSG(myGeometryFactory.getGeometry(point2), "EPSG:4326", "EPSG:3857");
        double area = GeometryBaseAnalysisUtil.getArea(geom1);
        System.out.println(String.valueOf(area));
    }

    @Test
    public void geojson2Geom() throws IOException, ParseException {
        RelatedGeomBean relatedGeomBean = new RelatedGeomBean();
        relatedGeomBean.setGeomType(GeomTypeEnum.POINT);
        relatedGeomBean.setDataType(DataTypeEnum.GEOJSON);
        relatedGeomBean.setCoordinates("{\"type\":\"Feature\",\"geometry\":{\"type\":\"Point\",\"coordinates\":[102,0.5]},\"properties\":{\"prop0\":\"value0\"}}");
        Geometry geom1 = myGeometryFactory.getGeometry(relatedGeomBean);
        System.out.println(GeometryUtil.getGeomCoordinatesString(geom1));
    }
}

2、坐标转换

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
import bean.TransformGeomBean;
import com.vividsolutions.jts.geom.Geometry;
import com.vividsolutions.jts.geom.GeometryCollection;
import com.vividsolutions.jts.io.ParseException;
import com.vividsolutions.jts.io.WKTWriter;
import enums.DataTypeEnum;
import enums.GeomTypeEnum;
import org.junit.Test;
import org.opengis.referencing.FactoryException;
import org.opengis.referencing.operation.TransformException;
import utils.CoordinateTransformUtil;
import utils.GeometryUtil;

import java.io.IOException;

/**
 * @author gisShield
 * @title: CoordinateTransformUtilTest
 * @projectName gis-tools
 * @description: TODO
 * @date 2021/5/4 12:06
 */
public class CoordinateTransformUtilTest {
    /**
     * 坐标转换
     *
     * @throws FactoryException
     * @throws TransformException
     * @throws ParseException
     * @throws IOException
     */
    @Test
    public void transform() throws FactoryException, TransformException, ParseException, IOException {
        TransformGeomBean transformGeomBean = new TransformGeomBean();
        transformGeomBean.setFromCrsCode("gcj02");
        transformGeomBean.setToCrsCode("EPSG:4326");
        transformGeomBean.setCoordinates("119.695947,30.202053,119.697097,30.20237,119.698332,30.202705,119.700422,30.203293,119.704157,30.204344,119.705496,30.204728,119.705912,30.204865,119.706183,30.204981,119.706381,30.205087,119.706614,30.205224,119.706955,30.205442,119.707277,30.205704,119.707634,30.20601,119.708076,30.206392,119.708519,30.206779,119.708811,30.20706,119.709262,30.207581,119.709664,30.208112,119.709927,30.208511,119.710211,30.209005,119.710412,30.209445,119.710576,30.209832,119.71071,30.210208,119.710895,30.211047,119.711008,30.211733,119.711064,30.212178,119.711078,30.212482,119.711072,30.21276,119.71104,30.213008,119.711002,30.213253,119.710863,30.213995,119.710589,30.215003,119.709191,30.219181,119.708362,30.221611,119.707681,30.223528,119.707176,30.224967,119.706829,30.225965,119.706768,30.226162,119.706728,30.226326,119.706696,30.226499,119.706676,30.22662,119.706659,30.226703,119.706441,30.227561,119.706218,30.228427,119.706099,30.228898,119.705829,30.229964,119.705705,30.230543,119.705622,30.230981,119.705561,30.231484,119.705539,30.231924,119.705526,30.232274,119.705547,30.232615,119.70559,30.2329,119.705689,30.233201,119.705845,30.233488,119.706062,30.233774,119.706309,30.234045,119.706561,30.23426,119.706797,30.234443,119.707173,30.234668,119.707674,30.234911,119.708368,30.235188,119.709023,30.235401,119.709635,30.235588,119.710333,30.235801,119.71095,30.236007,119.711454,30.236213,119.712342,30.236616,119.714697,30.237752,119.721277,30.240471,119.7271,30.242904,119.729519,30.243933,119.730468,30.244311,119.73082,30.244449,119.731046,30.244524,119.731256,30.24458,119.731434,30.244613,119.731622,30.244625,119.731838,30.244627,119.732145,30.244621,119.732915,30.244619,119.736877,30.244544,119.73742,30.244554,119.738323,30.244543,119.739236,30.244527,119.739916,30.244526,119.740268,30.244531,119.740643,30.244568,119.741115,30.244628,119.741657,30.244737,119.742153,30.244876,119.742639,30.24505,119.742929,30.245168,119.743178,30.245286,119.743374,30.245395,119.743556,30.245513,119.743733,30.245647,119.743961,30.24584,119.744194,30.246045,119.744554,30.246365,119.745793,30.247447,119.747059,30.248555,119.747948,30.249365,119.74821,30.249586,119.748455,30.249803,119.748637,30.249957,119.748937,30.250207,119.753115,30.253721,119.754242,30.25461,119.755013,30.255264,119.755663,30.255795,119.75632,30.256319,119.756687,30.256583,119.756982,30.256792,119.757401,30.257072,119.757822,30.257304,119.758356,30.257517,119.758962,30.257688,119.75982,30.25782,119.760972,30.257876,119.762155,30.257873,119.763383,30.257883,119.764346,30.257922,119.765068,30.25798,119.765729,30.258065,119.766231,30.258155,119.76677,30.258264,119.767269,30.258382,119.767747,30.258509,119.768511,30.258736,119.773253,30.26024,119.77384,30.260407,119.774747,30.26062,119.775369,30.260767,119.77605,30.260916,119.776595,30.260992,119.777116,30.261065,119.778044,30.261183,119.779904,30.261439,119.780778,30.261583,119.781116,30.261629,119.781391,30.261651,119.781679,30.261661,119.782346,30.261668,119.782984,30.261663,119.783653,30.261634,119.78464,30.261563,119.785138,30.261535,119.78646,30.261491,119.787123,30.261454,119.787659,30.261408,119.78844,30.261353,119.788943,30.261331,119.789456,30.261312,119.789843,30.261302,119.790197,30.261279,119.790877,30.261235,119.791227,30.261208,119.791646,30.261189,119.792113,30.261159,119.792631,30.26112,119.794931,30.260942,119.797001,30.260685,119.805287,30.259621,119.806355,30.259498,119.806945,30.259433,119.813779,30.258921,119.815312,30.258774,119.816241,30.258649,119.816711,30.258581,119.817058,30.258518,119.81768,30.258383,119.820153,30.25794,119.822294,30.257532,119.823101,30.25736,119.823483,30.257278,119.823789,30.257208,119.824622,30.257069,119.825131,30.257022,119.825641,30.256969,119.826467,30.256918,119.826999,30.256895,119.827557,30.256869,119.828001,30.256857,119.828472,30.256856,119.828928,30.256867,119.830969,30.256897,119.831957,30.256923,119.83318,30.256965,119.834083,30.256999,119.836057,30.257015,119.838423,30.257075,119.84133,30.257128,119.844047,30.257186,119.846875,30.257184,119.851783,30.257172,119.854063,30.257202,119.858164,30.257184,119.85991,30.257168,119.86098,30.257149,119.861586,30.257133,119.862144,30.257084,119.862831,30.257006,119.863402,30.256913,119.864169,30.256762,119.864759,30.256637,119.865425,30.256468,119.866079,30.25628,119.866734,30.256037,119.867587,30.255703,119.868442,30.255314,119.869412,30.254818,119.870017,30.254466,119.870607,30.254086,119.872204,30.253034,119.873371,30.252256,119.874281,30.251604,119.875312,30.250889,119.87562,30.2507,119.876344,30.250331,119.876573,30.250238,119.876761,30.250181,119.877014,30.250115,119.877308,30.250042,119.877828,30.249918,119.878316,30.249779,119.878796,30.249646,119.88211,30.248744,119.883698,30.248341,119.884808,30.248112,119.885602,30.247977,119.886525,30.247848,119.887338,30.247727,119.887914,30.247646,119.888539,30.247588,119.88906,30.247551,119.892506,30.247373,119.894695,30.247261,119.896792,30.247183,119.897348,30.24717,119.897686,30.247149,119.898002,30.24711,119.898584,30.247017,119.899019,30.246927,119.899166,30.24689,119.899603,30.246777,119.900051,30.246663,119.900311,30.246594,119.900574,30.246515,119.900825,30.246435,119.901036,30.246355,119.901431,30.246194,119.901746,30.246074,119.902599,30.245765,119.912384,30.242387,119.91295,30.242236,119.913578,30.2421,119.914508,30.241928,119.915005,30.241861,119.915415,30.241819,119.91729,30.241662,119.920666,30.241449,119.921361,30.241402,119.92171,30.241381,119.923086,30.241307,119.923907,30.241282,119.924341,30.241293,119.924682,30.241316,119.925012,30.241358,119.925339,30.241416,119.925741,30.241509,119.926179,30.241632,119.926589,30.241764,119.927329,30.242026,119.927904,30.242286,119.929447,30.243033,119.930981,30.243771,119.931512,30.244046,119.9396,30.248071,119.943264,30.249953,119.944326,30.250458,119.945072,30.25075,119.945436,30.250866,119.945823,30.250947,119.946434,30.251049,119.947024,30.251118,119.947475,30.251139,119.948003,30.251134,119.948714,30.251065,119.949285,30.250961,119.950036,30.250803,119.950712,30.250629,119.95131,30.250432,119.951892,30.250198,119.952635,30.24989,119.954486,30.249163,119.955111,30.248923,119.955554,30.248755,119.955998,30.248584,119.95648,30.248387,119.958687,30.247567,119.959838,30.247226,119.960213,30.247122,119.960476,30.247057,119.96071,30.247029,119.960876,30.247013,119.961045,30.247004,119.961222,30.247015,119.961418,30.247045,119.961597,30.247094,119.961774,30.247168,119.96197,30.247268,119.96211,30.247358,119.96223,30.247446,119.962327,30.247551,119.962426,30.247671,119.962566,30.247884,119.962807,30.248355,119.966707,30.255987,119.968489,30.259422,119.968843,30.260134,119.969202,30.260846,119.969543,30.261423,119.969699,30.261627,119.969841,30.261764,119.970004,30.261868,119.970133,30.261918,119.970254,30.261948,119.970405,30.261968,119.970554,30.261973,119.970734,30.261968,119.971013,30.261954,119.971346,30.261931,119.971898,30.26188,119.972842,30.261786,119.97382,30.261695,119.988704,30.260347,119.990975,30.260213,119.992117,30.260136");
        transformGeomBean.setGeomType(GeomTypeEnum.LINE);
        transformGeomBean.setDataType(DataTypeEnum.BASE);
        Geometry geometry = CoordinateTransformUtil.transform(transformGeomBean);
        if (GeometryUtil.isGeometryCollection(geometry)) {
            System.out.println(GeometryUtil.getGeomCoordinatesString((GeometryCollection) geometry));

        } else {
            WKTWriter wktWriter = new WKTWriter();
            System.out.println(wktWriter.write(geometry));
        }
    }
}
